CRT Terminator Feature Connector Signal Stability Test

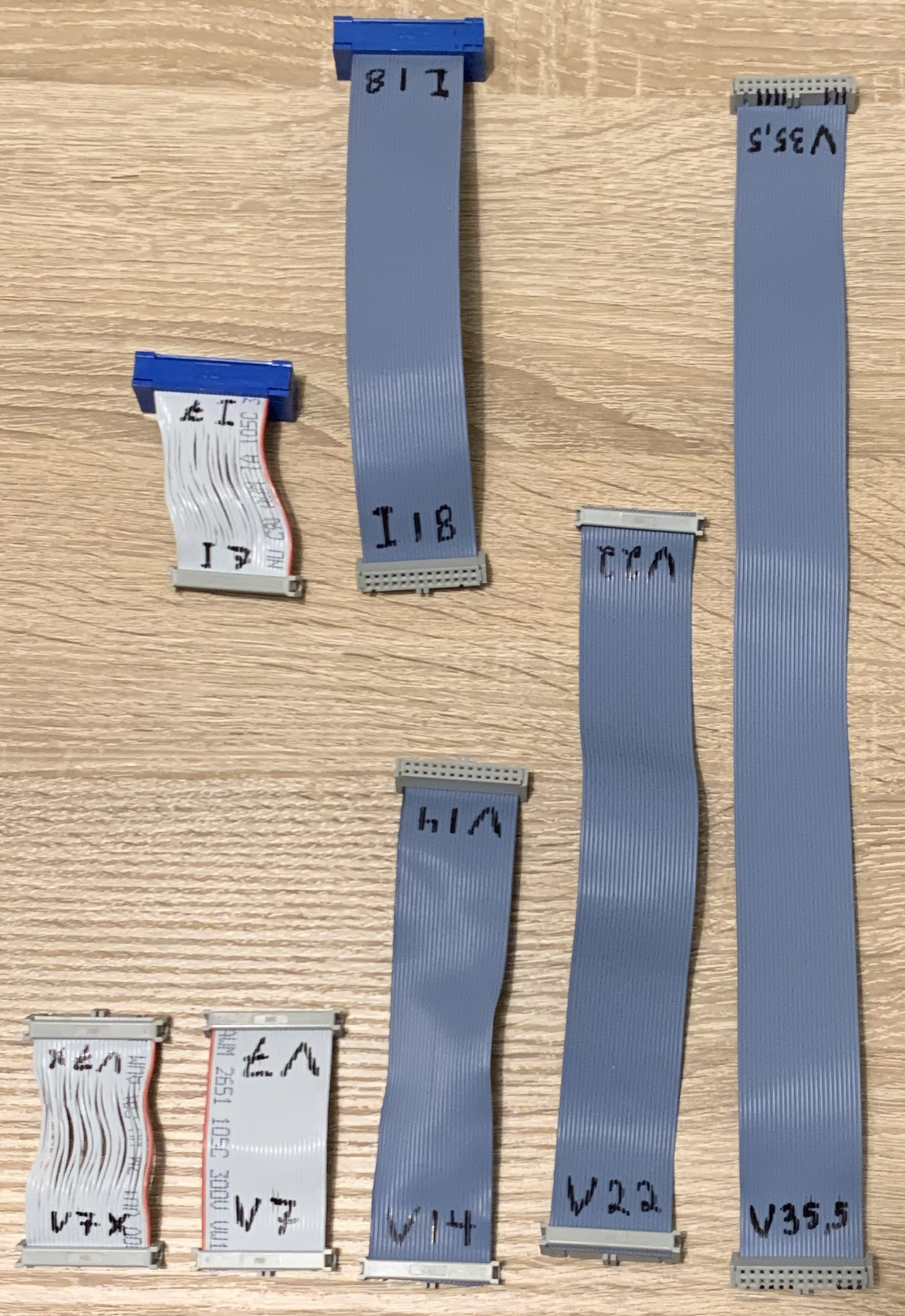

Tested cables: (cable numbers are centimeter lengths)

Test Setup

Firmware: DV1000-2025.1.3-3
Analog VGA cable connected
OC jumper=ON
MultiMode=ON
StutterStop=Level 3
Resolution=1600x1200
SVGA Adapter: Hercules Stingray Pro (ARK1000PV) PCI 2MB.

Test	Cable	Mode 13h: 320x200 256c 70Hz 12.637MHz	Mode 4Fh: 640x400 256c 70Hz 25.274MHz	Mode 47h: 640x480 256c 72Hz 31.508MHz	Mode 41h: 800x600 256c 60Hz 39.783MHz	Mode 54h: 640x480 16bpp 71Hz 64.449MHz	Mode 42h: 1024x768p 256c 60Hz 64.449MHz	Mode 58h: 640x480 24bpp 60Hz 74.474MHz	Mode 43h: 1280x1024i 256c 86Hz 77.277MHz	Mode 55h: 800x600 16bpp 60Hz 79.565MHz	Mode 56h: 1024x768i 16bpp 87Hz 94.430MHz
FC ground lines connected	V7	OK	OK	OK	OK	OK	OK	OK	OK	CHECKER.EXE: OK SEA cyberpunk.jpg: OK	CHECKER.EXE: Stable video sync, but some flickering pixels. SEA cyberpunk.jpg: OK, no glitches.
	V7X	OK	OK	OK	OK	OK	OK	OK	OK	CHECKER.EXE: OK SEA cyberpunk.jpg: OK	CHECKER.EXE: Stable video sync, but some flickering pixels. SEA cyberpunk.jpg: OK, no glitches.
	V14	OK	OK	OK	OK	OK	OK	OK	OK	CHECKER.EXE: OK SEA cyberpunk.jpg: OK	CHECKER.EXE: Unstable video sync. SEA cyberpunk.jpg: no signal, black screen.
	V22	OK	OK	OK	OK	OK	OK	OK. Pixel glitches in VGA output	OK	OK. VGA output horizontally distorted.	CHECKER.EXE: Stable video sync, but some flickering pixels and individual horizontal scanline artifacts. SEA cyberpunk.jpg: no signal, black screen.
	V35.5	OK	OK	OK	OK	OK. VGA output has very strong glitches	OK. VGA output has very strong glitches	OK. VGA output has degenerated to noise and colors are distorted, picture is unrecognizable.	OK	OK. VGA output is fully degenerated into horizontal artifact lines, like a C64 game loading screen.	CHECKER.EXE: stable sync, but some flickering pixels and individual horizontal scanline artifacts. SEA cyberpunk.jpg: OK.
FC ground planes not connected	V7	OK	OK	OK	OK	OK	OK	CHECKER.EXE: OK. SEA cyberpunk.jpg: OK	CHECKER.EXE: OK beach.jpg: OK	CHECKER.EXE: OK SEA cyberpunk.jpg: Rare intermittent scanline glitchs. Almost ok.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.
	V7X	OK	OK	OK	OK	OK	OK	CHECKER.EXE: Stable sync. Strong pixel artifacts and individual glitching scanlines. Disconnecting the VGA cable removes all artifacts and stabilizes the image. SEA cyberpunk.jpg: OK	CHECKER.EXE: OK beach.jpg: OK	CHECKER.EXE: OK SEA cyberpunk.jpg: continuous scanline artifacting and occassionally full frame flickering. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.
	V14	OK	OK	OK	OK	OK	OK	CHECKER.EXE: Stable sync. Strong pixel artifacts and individual glitching scanlines. Disconnecting VGA cable removes all artifacts and stabilizes the image. SEA cyberpunk.jpg: strong scanline artifacts. Disconnecting VGA cable does not help. Loses sync periodically.	CHECKER.EXE: Loses sync periodically. Disconnecting VGA cable does not help. beach.jpg: black screen.	CHECKER.EXE: Black screen. SEA: Black screen.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help. SEA: Black screen.
	V22	OK	OK	OK	OK	Individual pixel glitches and video sync is occassionally lost.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.
	V35.5	OK	OK	OK	OK	CHECKER.EXE: Broken sync, pixel artifacts. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.	CHECKER.EXE: Black screen. Disconnecting VGA cable does not help.
